2010–2024 Toyota 4Runner KDSS Frame-Rail 3D Scan Pair

Design 5th-gen Toyota 4Runner rock sliders from real vehicle geometry on both sides of a KDSS-equipped truck.

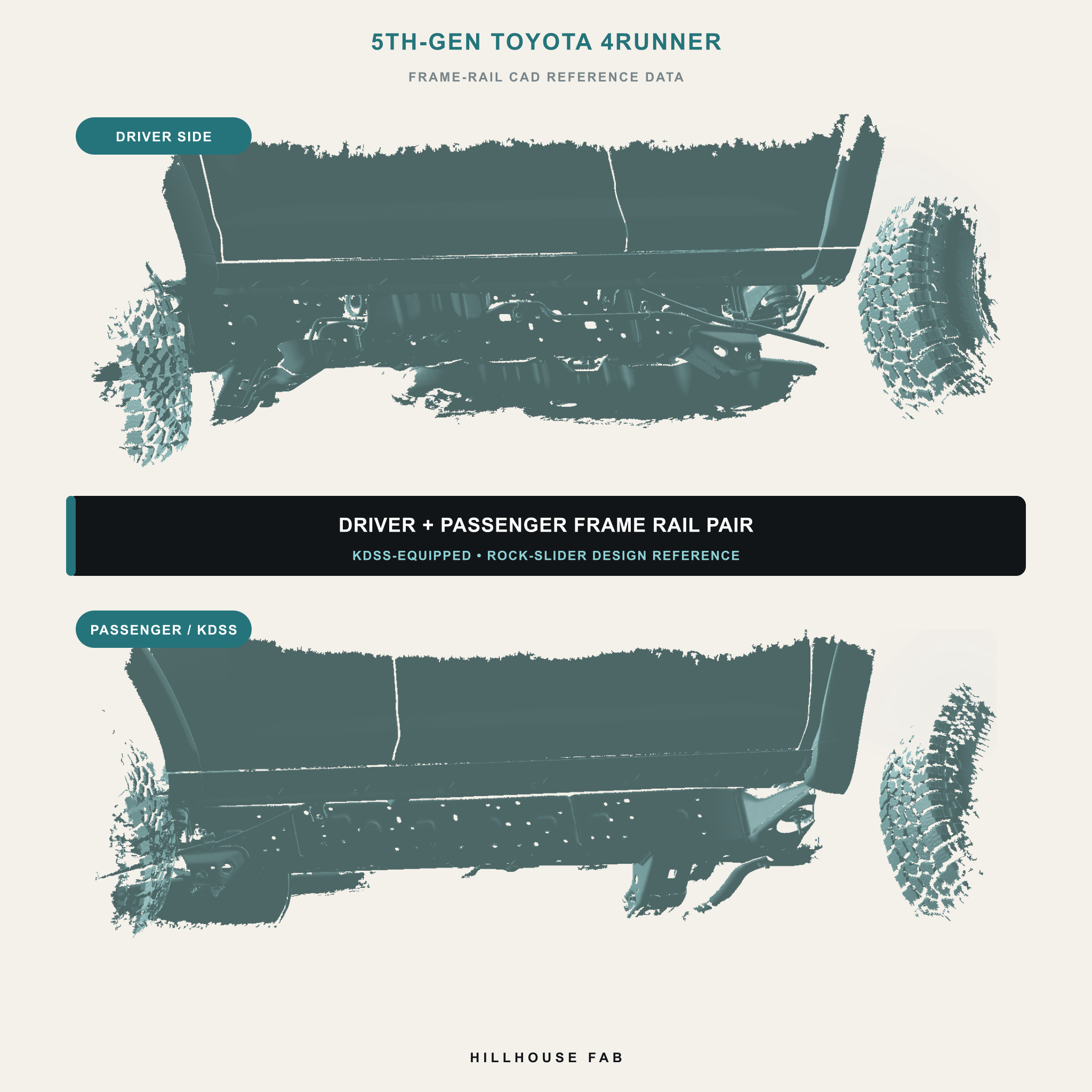

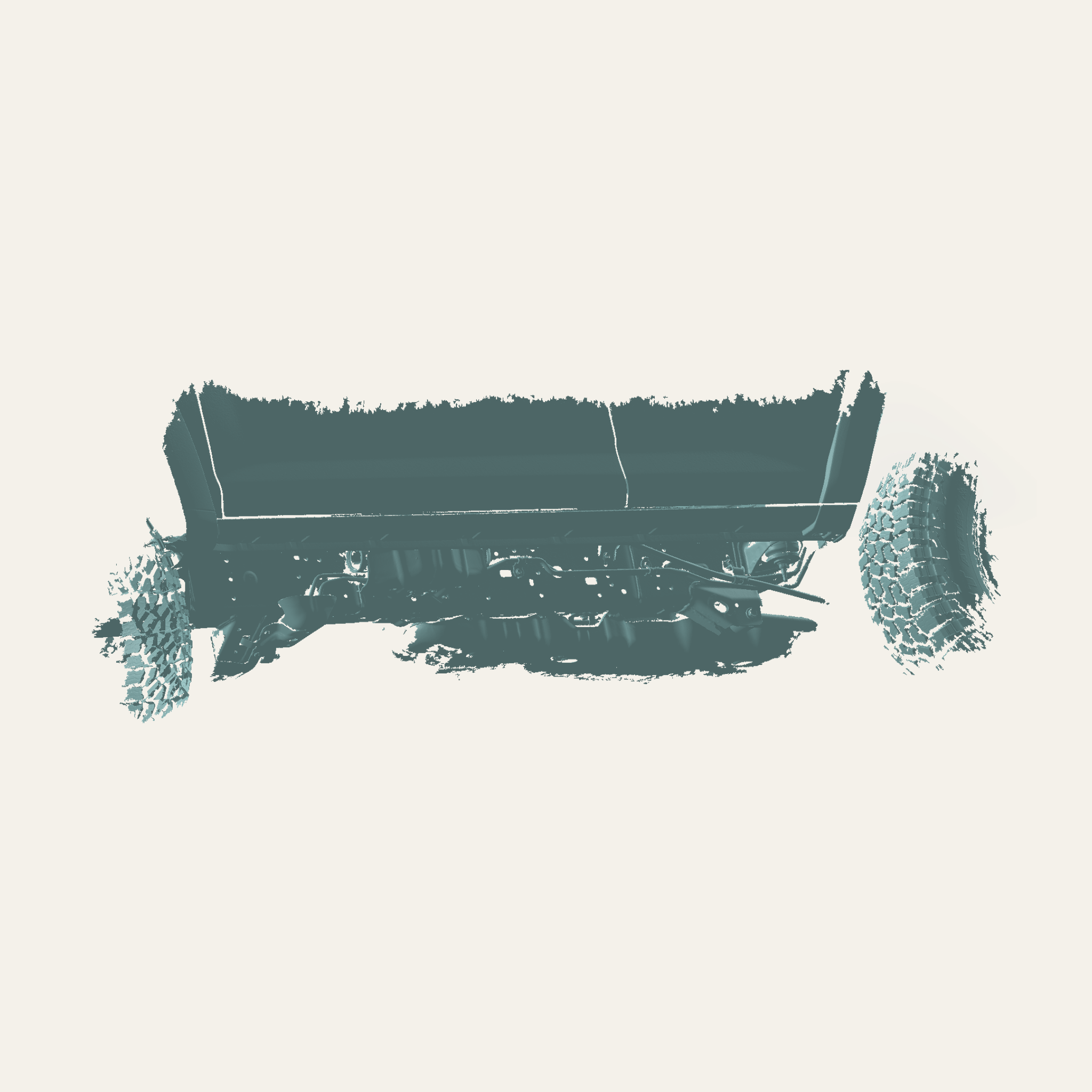

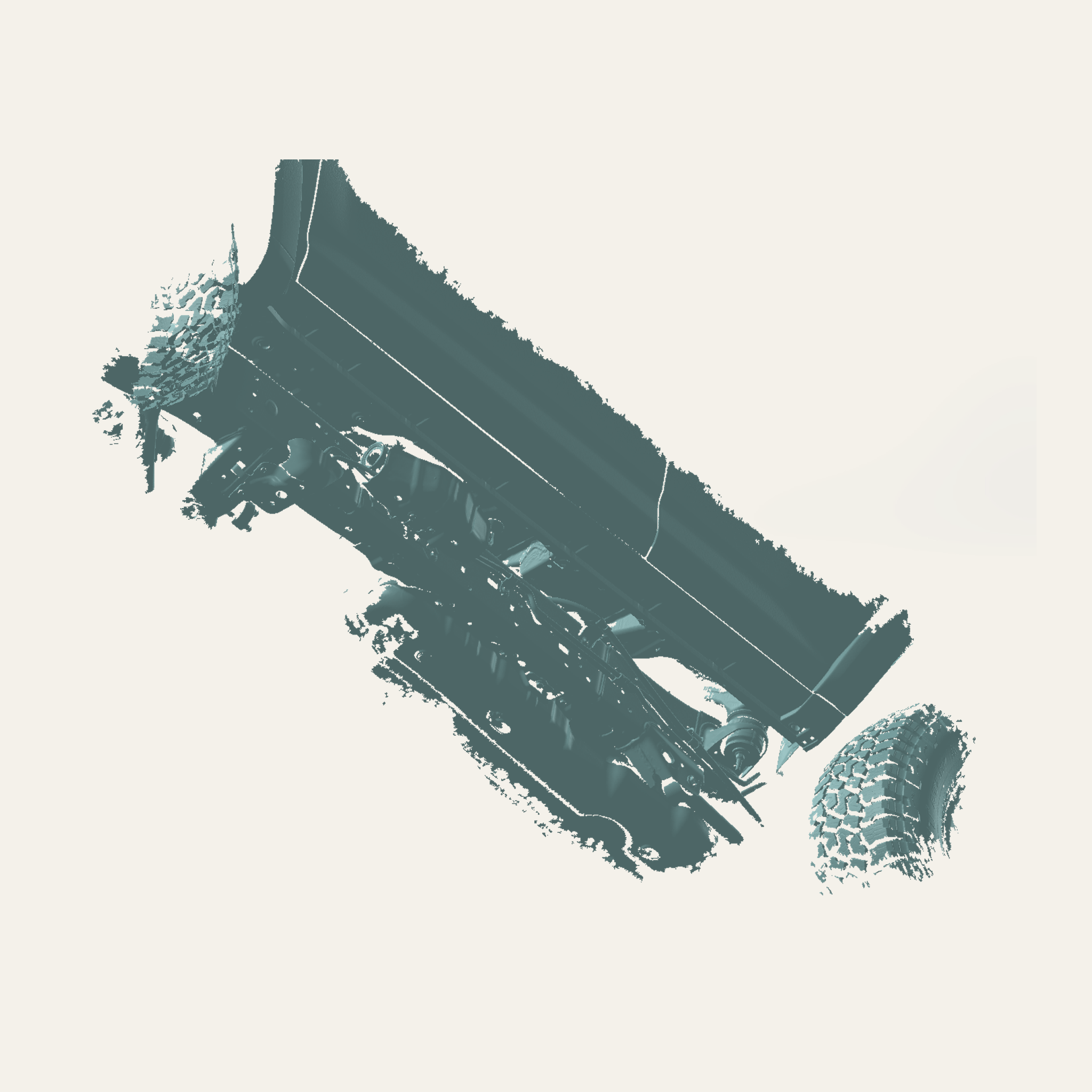

• Includes separate driver-side and passenger-side frame-rail STL scans
• Captures the frame rails, rocker/pinch-weld area, body clearance and nearby underbody reference geometry

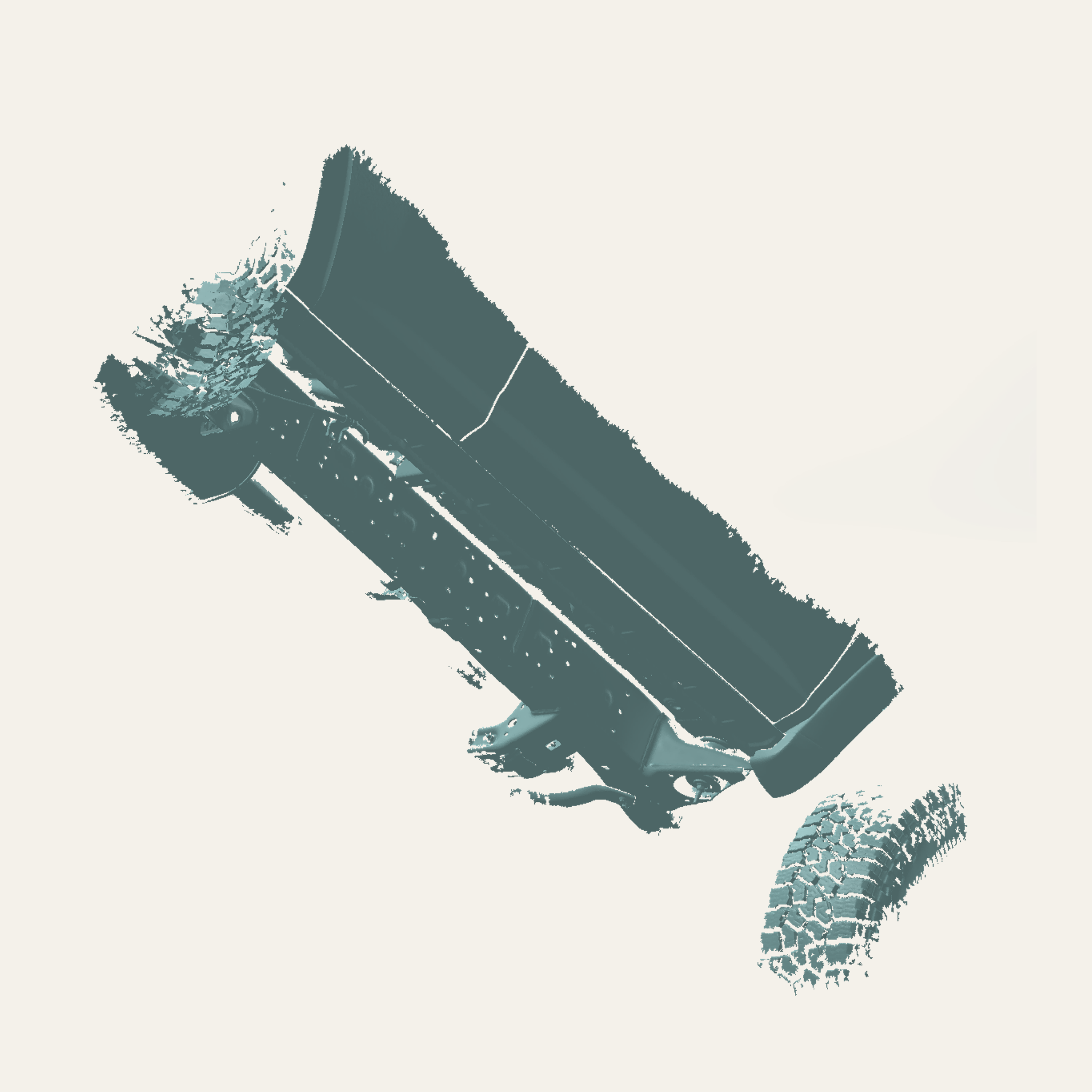

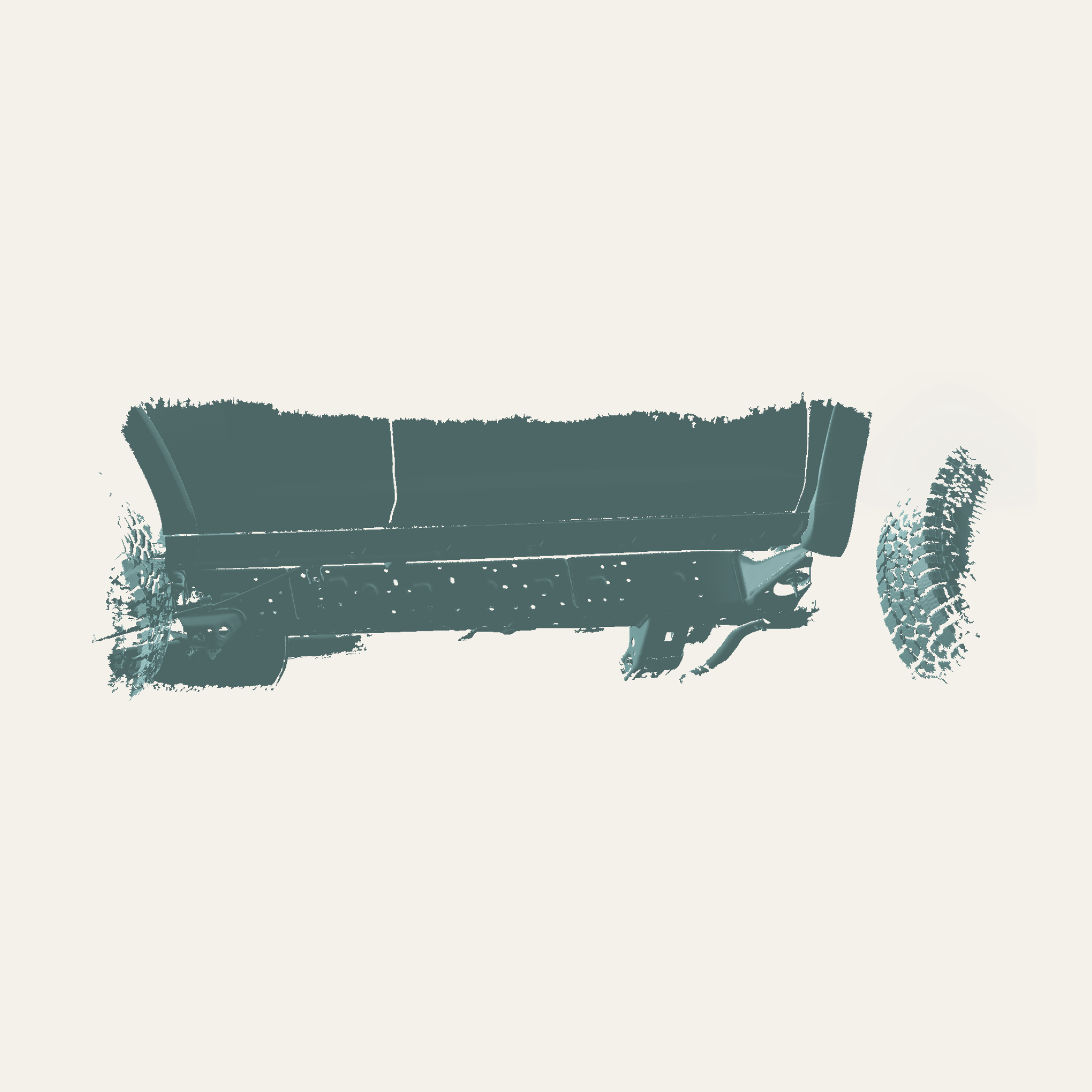

• Passenger-side scan includes the KDSS-equipped layout for accurate clearance planning

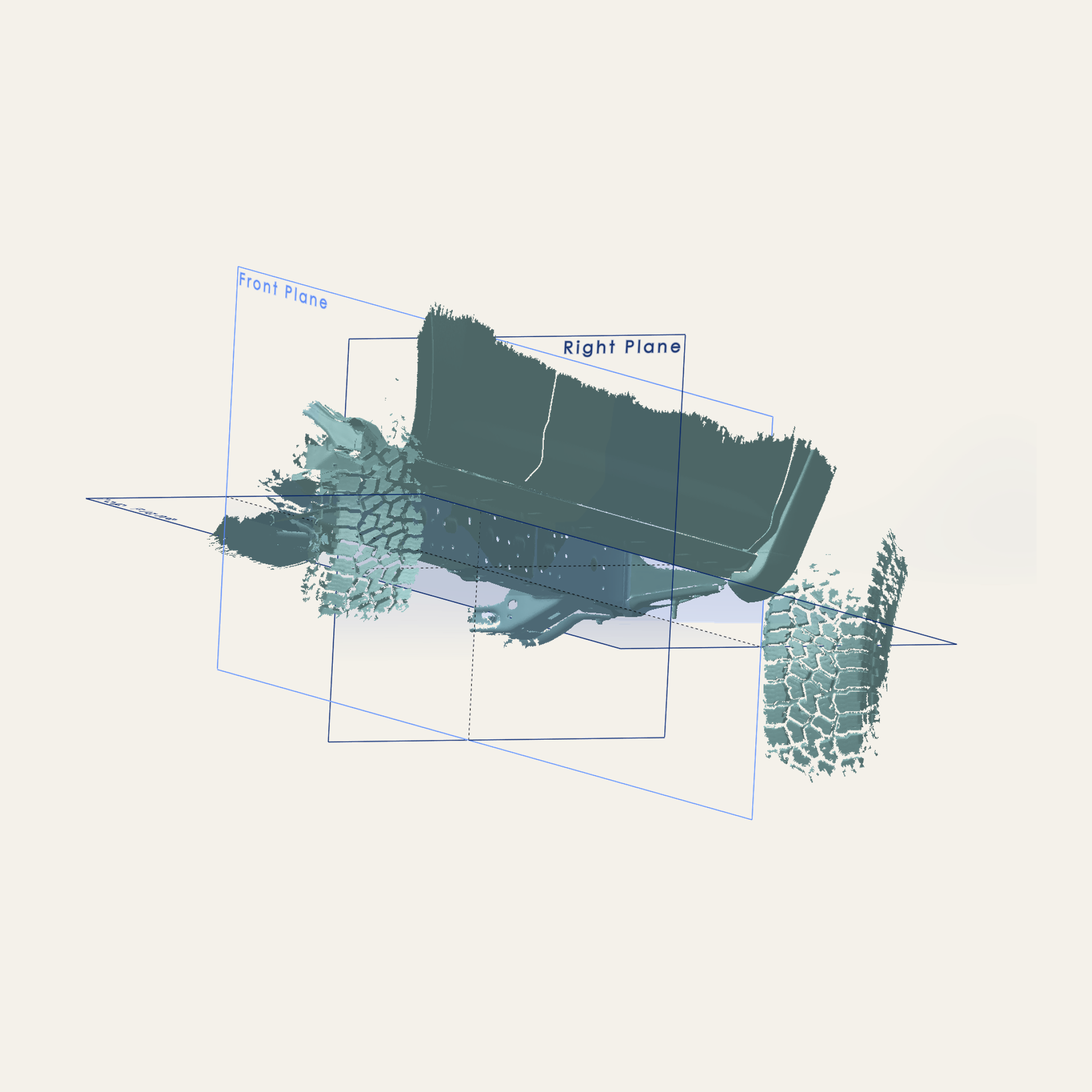

• Aligned and centered to a practical vehicle coordinate system
• Both STL files are supplied together in one downloadable ZIP

Fitment: 2010–2024 Toyota 4Runner (5th generation) with KDSS. Verify the geometry against your specific model year, trim and vehicle before fabrication.

Units: Both STL files are in inches. When importing, use 1 STL unit = 1 inch.

Important: This is scan data, not a finished parametric CAD model or production-ready rock-slider design. Scans may include incomplete areas, surface noise and surrounding vehicle geometry. Always confirm critical dimensions, mounting locations and clearances on the physical vehicle before cutting material.

For design and fabrication reference use only. No physical product is shipped.
