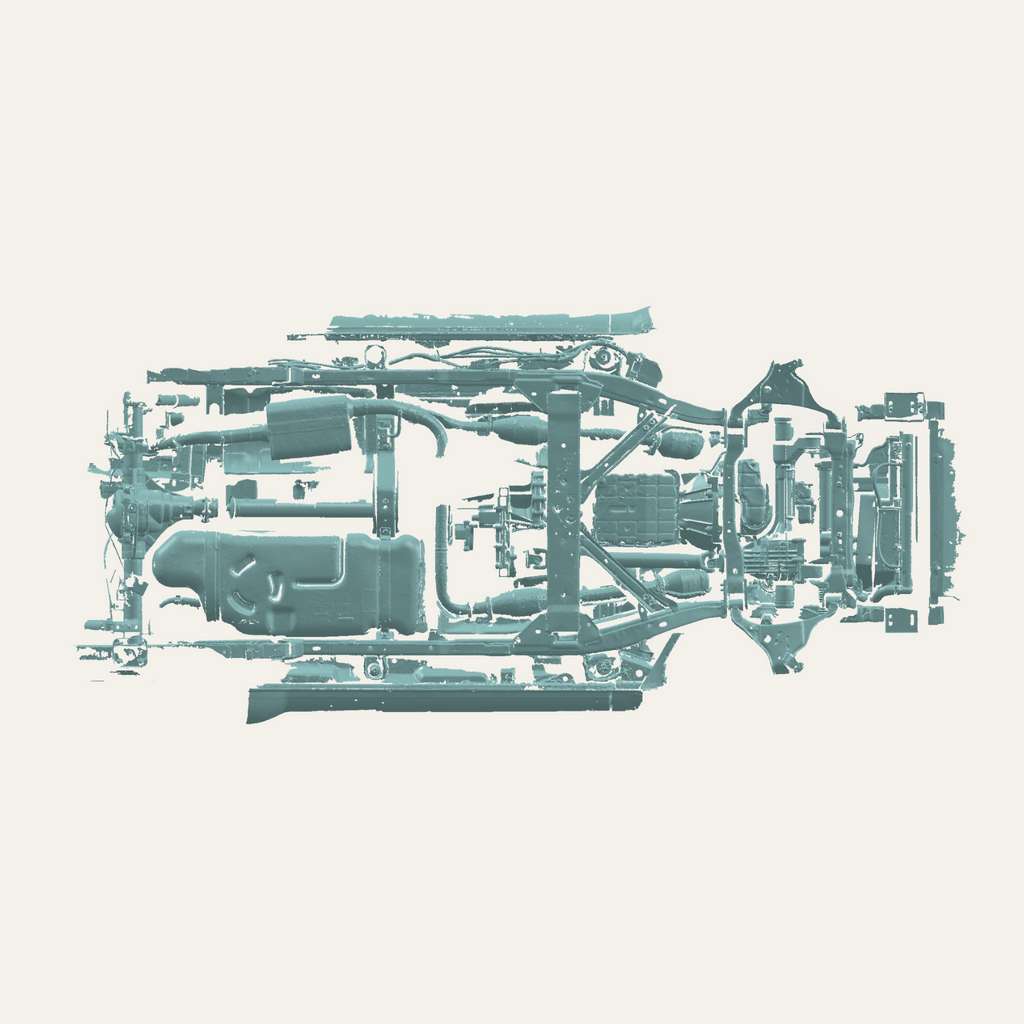

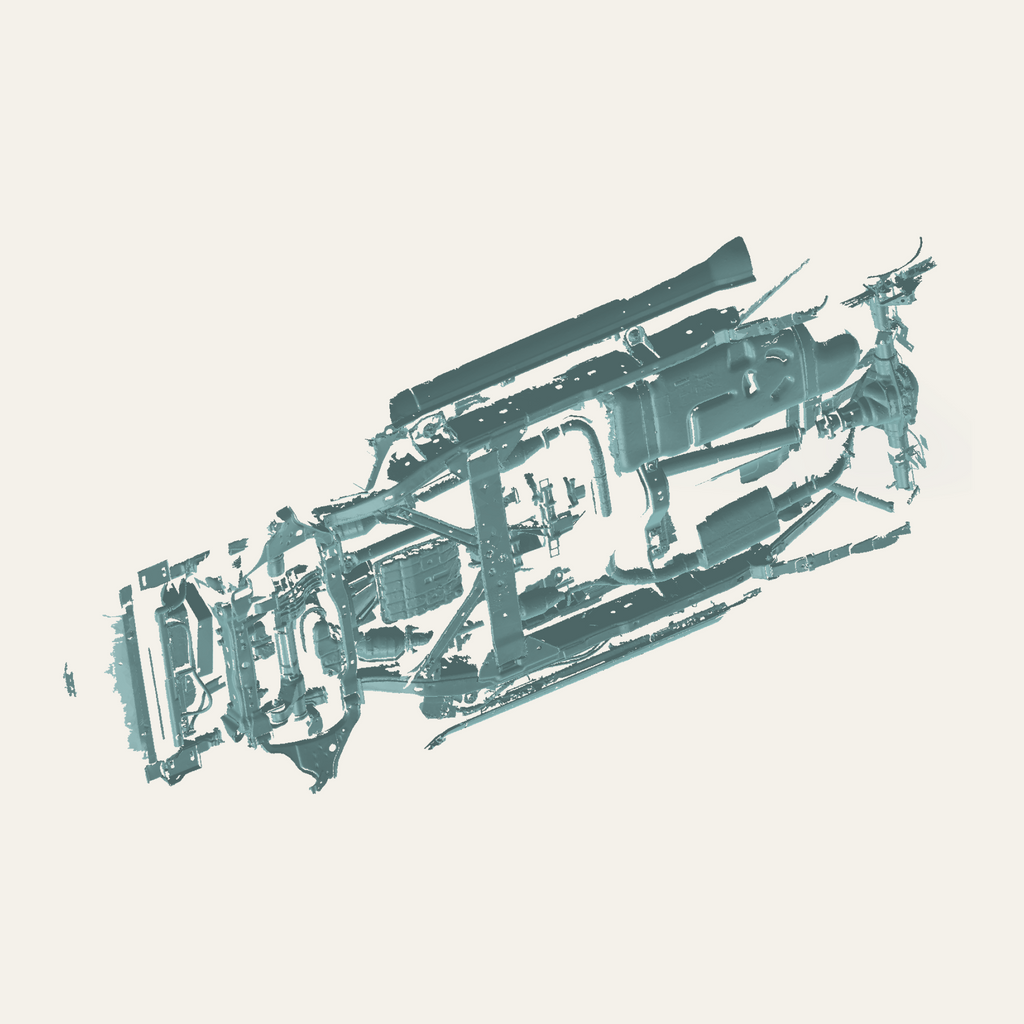

2005–2015 Nissan Xterra Full Underside 3D Scan

A high-coverage scan of the 2nd-gen Xterra underside, aligned and ready to use as the foundation for armor and chassis-adjacent fabrication.

Fitment: 2005–2015 Nissan Xterra (2nd generation)

File included: 1 STL mesh

Units: Import as inches — 1 STL unit = 1 inch. STL files do not embed a unit setting.

Coverage and use cases

• Frame rails, crossmembers, drivetrain, axles, suspension, exhaust, fuel-tank area, rocker areas and surrounding reference geometry captured in the scan
• Useful for skid plates, rock sliders, belly pans, crossmembers, exhaust clearance, differential guards and rear differential-cover development
• Aligned to clean CAD planes so you can start sketching without manually rotating the mesh
• One scan can support multiple products across the front, center and rear of the vehicle

This is scan data, not a finished parametric CAD model. Coverage and surface quality vary with scanner access and line of sight. Verify critical dimensions and mounting points on the vehicle before cutting final parts.

Digital product: no physical item will be shipped.
